Prin toamna am facut un termometru cu 2 senzori LM335 si afisajul LCD 16x2, pe care l-am prezentat in 2 articole:
- Termometru dublu cu LM335Z si un afisaj LCD cu 16 coloane si 2 randuri
- Termometru dublu cu LM335Z si un afisaj LCD cu 16 coloane si 2 randuri (II)
si foloseam schema de conectare, care include si un LED multicolor pe post de indicator de confort:
Pentru inceput a trebuit sa iau la mana sketch-ul anterior si sa-l inteleg si, eventual, sa modific ce nu-mi place si ce am eu nevoie. Am creat si un caracter pentru unitatea de masura (grad Celsius) si am facut o numaratoare a temperaturilor de la +99 la -99 grade Celsius, pentru a aranja si cifrele, cand sunt cu o singura cifra, sau cu 2 sau e zero fara semn.
Rezultatul se vede in 2 filmulete, primul in romana si al doilea cu ceva engleza (am facut asta pentru a multumi si partea romana si cea externa, sa zic asa):

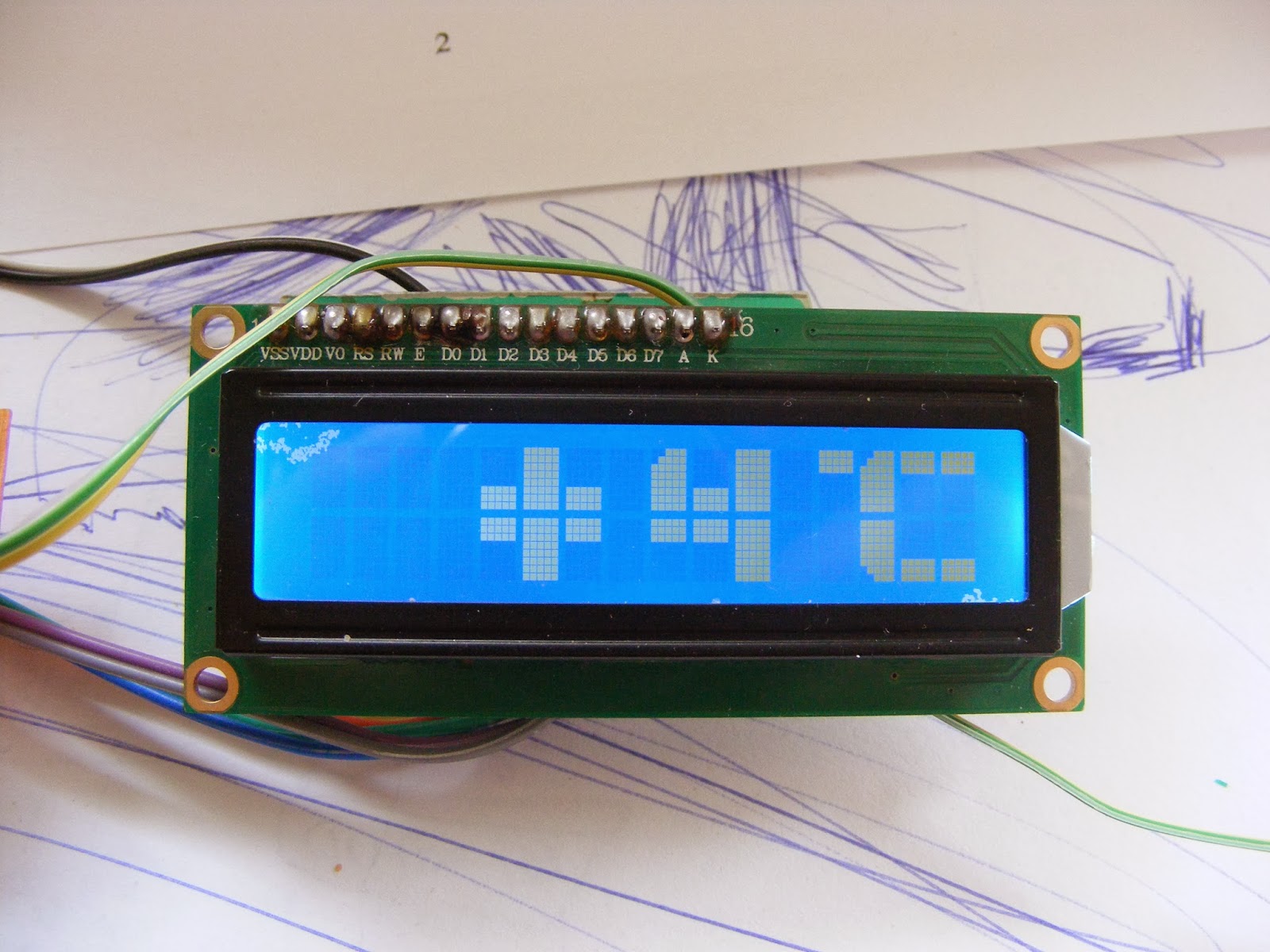

- testare afisare caractere mari pe LCD16x2
/*
http://www.instructables.com/id/Custom-Large-Font-For-16x2-LCDs/?ALLSTEPS
A set of custom made large numbers for a 16x2 LCD using the
LiquidCrystal librabry. Works with displays compatible with the
Hitachi HD44780 driver.
Made by Michael Pilcher - 2/9/2010
Original change by Nicu FLORICA aka niq_ro (06-Jan-2014)
http://www.tehnic.go.ro
http://www.niqro.3x.ro
http://nicuflorica.blogspot.com
The Circuit:
LCD RS pin to D7
LCD Enable pin to D6
LCD D4 pin to D5
LCD D5 pin to D4
LCD D6 pin to D3
LCD D7 pin to D2
LCD Vee tied to a pot to control brightness
LCD Vss and R/W tied to ground
LCD Vcc to +5V
LCD pin 15 tied to pushbutton for control of backlight
*/
// include the library
#include <LiquidCrystal.h>
// initialize the interface pins
LiquidCrystal lcd(7, 6, 5, 4, 3, 2);
int x = 0;
// the 8 arrays that form each segment of the custom numbers
byte LT[8] =
{
B00111,
B01111,
B11111,
B11111,
B11111,
B11111,
B11111,
B11111
};
byte UB[8] =
{
B11111,
B11111,
B11111,
B00000,
B00000,
B00000,
B00000,
B00000
};
byte RT[8] =
{
B11100,
B11110,
B11111,
B11111,
B11111,
B11111,
B11111,
B11111
};
byte LL[8] =
{
B11111,
B11111,
B11111,
B11111,
B11111,
B11111,
B01111,
B00111
};
byte LB[8] =
{
B00000,
B00000,
B00000,
B00000,
B00000,
B11111,
B11111,
B11111
};
byte LR[8] =
{
B11111,
B11111,
B11111,
B11111,
B11111,
B11111,
B11110,
B11100
};
byte UMB[8] =
{
B11111,
B11111,
B11111,
B00000,
B00000,
B00000,
B11111,
B11111
};
byte LMB[8] =
{
B11111,
B11111,
B00000,
B00000,
B00000,
B11111,
B11111,
B11111
};
void setup()
{
// assignes each segment a write number
lcd.createChar(8,LT);
lcd.createChar(1,UB);
lcd.createChar(2,RT);
lcd.createChar(3,LL);
lcd.createChar(4,LB);
lcd.createChar(5,LR);
lcd.createChar(6,UMB);
lcd.createChar(7,LMB);
// sets the LCD's rows and colums:
lcd.begin(0, 2);
}
void custom0O()
{ // uses segments to build the number 0
lcd.setCursor(x, 0);
lcd.write(8);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(5);
}
void custom1()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x+1,1);
lcd.write(255);
}
void custom2()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(8);
lcd.write(7);
lcd.write(4);
}
void custom3()
{
lcd.setCursor(x,0);
lcd.write(6);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void custom4()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(4);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(1);
lcd.write(255);
}
void custom5()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(1);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void custom6()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(7);
lcd.write(5);
}
void custom7()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x+1, 1);
lcd.write(8);
}
void custom8()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(7);
lcd.write(5);
}
void custom9()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(4);
lcd.write(7);
lcd.write(5);
}
void customA()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(254);
lcd.write(255);
}
void customB()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(5);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(7);
lcd.write(2);
}
void customC()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(4);
lcd.write(4);
}
void customD()
{
lcd.setCursor(x, 0);
lcd.write(255);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(4);
lcd.write(5);
}
void customE()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(7);
lcd.write(7);
}
void customF()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(255);
}
void customG()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(4);
lcd.write(2);
}
void customH()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(4);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(254);
lcd.write(255);
}
void customI()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(255);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(4);
lcd.write(255);
lcd.write(4);
}
void customJ()
{
lcd.setCursor(x+2,0);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(4);
lcd.write(4);
lcd.write(5);
}
void customK()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(2);
}
void customL()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(4);
lcd.write(4);
}
void customM()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(3);
lcd.write(5);
lcd.write(2);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(254);
lcd.write(255);
}
void customN()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(2);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(3);
lcd.write(5);
}
void customP()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
}
void customQ()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(255);
lcd.write(4);
}
void customR()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(2);
}
void customS()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void customT()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(255);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(254);
lcd.write(255);
}
void customU()
{
lcd.setCursor(x, 0);
lcd.write(255);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(5);
}
void customV()
{
lcd.setCursor(x, 0);
lcd.write(3);
lcd.write(254);
lcd.write(254);
lcd.write(5);
lcd.setCursor(x+1, 1);
lcd.write(2);
lcd.write(8);
}
void customW()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(254);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(8);
lcd.write(2);
lcd.write(5);
}
void customX()
{
lcd.setCursor(x,0);
lcd.write(3);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x,1);
lcd.write(8);
lcd.write(254);
lcd.write(2);
}
void customY()
{
lcd.setCursor(x,0);
lcd.write(3);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x+1,1);
lcd.write(255);
}
void customZ()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(5);
lcd.setCursor(x, 1);
lcd.write(8);
lcd.write(7);
lcd.write(4);
}
void customqm()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(254);
lcd.write(7);
}
void customsm()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(7);
}
void customplus() // made by niq_ro
{
lcd.setCursor(x,0);
lcd.write(4);
lcd.write(255);
lcd.write(4);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(255);
lcd.write(1);
}
void customminus() // made by niq_ro
{
lcd.setCursor(x,0);
lcd.write(4);
lcd.write(4);
lcd.write(4);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(1);
lcd.write(1);
}
void customgrad()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x, 1);
lcd.write(254);
lcd.write(3);
lcd.write(4);
lcd.write(4);
}
// subrutina de afisare a numerelor
void afisare(int numar)
{
switch (numar)
{
case 0:
custom0O();
break;
case 1:
custom1();
break;
case 2:
custom2();
break;
case 3:
custom3();
break;
case 4:
custom4();
break;
case 5:
custom5();
break;
case 6:
custom6();
break;
case 7:
custom7();
break;
case 8:
custom8();
break;
case 9:
custom9();
break;
}
}
void temperaturi(int t)
{
if (t>0)
{
if (t>=10)
{
x = 0;
lcd.clear();
customplus();
x = x + 4;
afisare(int(t/10));
x = x + 4;
afisare(t % 10);
x = x + 4;
customgrad();
// delay(500);
}
else
if (t<10)
{
x = 4;
lcd.clear();
customplus();
x = x + 4;
afisare(t);
x = x + 4;
customgrad();
// delay(500);
}
}
if (t==0)
{
x = 8;
lcd.clear();
afisare(0);
x = x + 4;
customgrad();
// delay(500);
}
if (t<0)
{
t=-t;
if (t<10)
{
x = 4;
lcd.clear();
customminus();
x = x + 4;
afisare(t);
x = x + 4;
customgrad();
//delay(500);
}
else
{
x = 0;
lcd.clear();
customminus();
x = x + 4;
afisare(int(t/10));
x = x + 4;
afisare(t % 10);
x = x + 4;
customgrad();
//delay(500);
}
}
}
void loop()
{
// Print a message to the LCD.
lcd.setCursor(0, 0);
lcd.print("www.tehnic.go.ro");
lcd.setCursor(0, 1);
lcd.print("creat de niq_ro");
delay (2500);
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("caractere mari");
lcd.setCursor(0, 1);
lcd.print("Michael Pilcher");
delay (2500);
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("modificate de");
lcd.setCursor(1, 1);
lcd.print("Nicu FLORICA");
delay (2500);
lcd.clear();
/*
// use for test number display
int t2 = -56;
temperaturi(t2);
delay(1000);
lcd.clear();
*/
for(int t5 = -99 ; t5 <100 ; t5++)
{
temperaturi(t5);
delay(500);
lcd.clear();
}
delay(3000);
for(int t5 = 99 ; t5 >-100 ; t5--)
{
temperaturi(t5);
delay(500);
lcd.clear();
}
} // end of program
Am facut 2 filmulete, care prezinta ce am scris:
Sketch-ul folosit de mine a devenit:
/*
http://www.instructables.com/id/Custom-Large-Font-For-16x2-LCDs/?ALLSTEPS
A set of custom made large numbers for a 16x2 LCD using the
LiquidCrystal librabry. Works with displays compatible with the
Hitachi HD44780 driver.
-------------------
| LCD | Arduino |
-------------------
LCD RS pin to digital pin 7 | RS | D7 |
LCD Enable pin to digital pin 6 | E | D6 |
LCD D4 pin to digital pin 5 | D4 | D5 |
LCD D5 pin to digital pin 4 | D5 | D4 |
LCD D6 pin to digital pin 3 | D6 | D3 |
LCD D7 pin to digital pin 2 | D7 | D2 |
LCD R/W pin to ground | R/W | GND |
-------------------
// http://arduino.cc/en/Reference/LiquidCrystalCreateChar
Made by Michael Pilcher
2/9/2010
Original change by Nicu FLORICA aka niq_ro (06-Jan-2014)
http://www.tehnic.go.ro
http://www.niqro.3x.ro
http://nicuflorica.blogspot.com
*/
// include the library
#include <LiquidCrystal.h>
// initialize the interface pins
LiquidCrystal lcd(7, 6, 5, 4, 3, 2);
int x = 0;
// the 8 arrays that form each segment of the custom numbers
byte LT[8] =
{
B00111,
B01111,
B11111,
B11111,
B11111,
B11111,
B11111,
B11111
};
byte UB[8] =
{
B11111,
B11111,
B11111,
B00000,
B00000,
B00000,
B00000,
B00000
};
byte RT[8] =
{
B11100,
B11110,
B11111,
B11111,
B11111,
B11111,
B11111,
B11111
};
byte LL[8] =
{
B11111,
B11111,
B11111,
B11111,
B11111,
B11111,
B01111,
B00111
};
byte LB[8] =
{
B00000,
B00000,
B00000,
B00000,
B00000,
B11111,
B11111,
B11111
};
byte LR[8] =
{
B11111,
B11111,
B11111,
B11111,
B11111,
B11111,
B11110,
B11100
};
byte UMB[8] =
{
B11111,
B11111,
B11111,
B00000,
B00000,
B00000,
B11111,
B11111
};
byte LMB[8] =
{
B11111,
B11111,
B00000,
B00000,
B00000,
B11111,
B11111,
B11111
};
// variables
int t1, t2;
float t10, t20;
float t11, t21;
float t12, t22;
int temperaturePin1 = A0; // output from first LM335 is put at analog input no.0
int temperaturePin2 = A1; // output from second LM335 is put at analog input no.1
// cei 2 senzori de temperaturia LM335 sunt legati la pinii A0 si A1
// other
int led = 13; //pin for LED
int ledr = 11; //pin for red LED
int leda = 10; //pin for blue LED
int ledv = 9; //pin for green LED
void setup()
{
// assignes each segment a write number
lcd.createChar(8,LT);
lcd.createChar(1,UB);
lcd.createChar(2,RT);
lcd.createChar(3,LL);
lcd.createChar(4,LB);
lcd.createChar(5,LR);
lcd.createChar(6,UMB);
lcd.createChar(7,LMB);
// sets the LCD's rows and colums:
lcd.begin(0, 2);
lcd.setCursor(1, 0);
lcd.print("large fonts by");
lcd.setCursor(1, 1);
lcd.print("Michael Pilcher");
delay (2500);
lcd.clear();
lcd.setCursor(2, 0);
lcd.print("modified by");
lcd.setCursor(2, 1);
lcd.print("Nicu FLORICA");
delay (2500);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("www.tehnic.go.ro");
lcd.setCursor(0, 1);
lcd.print("www.niqro.3x.ro");
delay (2500);
lcd.clear();
lcd.clear(); // clear the screen
lcd.setCursor(0, 0); // put cursor at colon 2 and row 0 = left/up
lcd.print("dual thermometer"); // print a text
lcd.setCursor(2, 1); // put cursor at colon 0 and row 0 = left/down
lcd.print("2.0 by niq_ro"); // print a text
delay (2000);
lcd.clear(); // clear the screen
}
void custom0O()
{ // uses segments to build the number 0
lcd.setCursor(x, 0);
lcd.write(8);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(5);
}
void custom1()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x+1,1);
lcd.write(255);
}
void custom2()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(8);
lcd.write(7);
lcd.write(4);
}
void custom3()
{
lcd.setCursor(x,0);
lcd.write(6);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void custom4()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(4);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(1);
lcd.write(255);
}
void custom5()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(1);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void custom6()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(7);
lcd.write(5);
}
void custom7()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x+1, 1);
lcd.write(8);
}
void custom8()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(7);
lcd.write(5);
}
void custom9()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(4);
lcd.write(7);
lcd.write(5);
}
void customA()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(254);
lcd.write(255);
}
void customB()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(5);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(7);
lcd.write(2);
}
void customC()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(4);
lcd.write(4);
}
void customD()
{
lcd.setCursor(x, 0);
lcd.write(255);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(4);
lcd.write(5);
}
void customE()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(7);
lcd.write(7);
}
void customF()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(255);
}
void customG()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(4);
lcd.write(2);
}
void customH()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(4);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(255);
lcd.write(254);
lcd.write(255);
}
void customI()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(255);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(4);
lcd.write(255);
lcd.write(4);
}
void customJ()
{
lcd.setCursor(x+2,0);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(4);
lcd.write(4);
lcd.write(5);
}
void customK()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(2);
}
void customL()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(4);
lcd.write(4);
}
void customM()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(3);
lcd.write(5);
lcd.write(2);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(254);
lcd.write(255);
}
void customN()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(2);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(3);
lcd.write(5);
}
void customP()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(255);
}
void customQ()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(1);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(255);
lcd.write(4);
}
void customR()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x,1);
lcd.write(255);
lcd.write(254);
lcd.write(2);
}
void customS()
{
lcd.setCursor(x,0);
lcd.write(8);
lcd.write(6);
lcd.write(6);
lcd.setCursor(x, 1);
lcd.write(7);
lcd.write(7);
lcd.write(5);
}
void customT()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(255);
lcd.write(1);
lcd.setCursor(x,1);
lcd.write(254);
lcd.write(255);
}
void customU()
{
lcd.setCursor(x, 0);
lcd.write(255);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(3);
lcd.write(4);
lcd.write(5);
}
void customV()
{
lcd.setCursor(x, 0);
lcd.write(3);
lcd.write(254);
lcd.write(254);
lcd.write(5);
lcd.setCursor(x+1, 1);
lcd.write(2);
lcd.write(8);
}
void customW()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.write(254);
lcd.write(254);
lcd.write(255);
lcd.setCursor(x,1);
lcd.write(3);
lcd.write(8);
lcd.write(2);
lcd.write(5);
}
void customX()
{
lcd.setCursor(x,0);
lcd.write(3);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x,1);
lcd.write(8);
lcd.write(254);
lcd.write(2);
}
void customY()
{
lcd.setCursor(x,0);
lcd.write(3);
lcd.write(4);
lcd.write(5);
lcd.setCursor(x+1,1);
lcd.write(255);
}
void customZ()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(5);
lcd.setCursor(x, 1);
lcd.write(8);
lcd.write(7);
lcd.write(4);
}
void customqm()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(6);
lcd.write(2);
lcd.setCursor(x, 1);
lcd.write(254);
lcd.write(7);
}
void customsm()
{
lcd.setCursor(x,0);
lcd.write(255);
lcd.setCursor(x, 1);
lcd.write(7);
}
void customplus() // made by niq_ro
{
lcd.setCursor(x,0);
lcd.write(4);
lcd.write(255);
lcd.write(4);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(255);
lcd.write(1);
}
void customminus() // made by niq_ro
{
lcd.setCursor(x,0);
lcd.write(4);
lcd.write(4);
lcd.write(4);
lcd.setCursor(x, 1);
lcd.write(1);
lcd.write(1);
lcd.write(1);
}
void customgrad()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.write(8);
lcd.write(1);
lcd.write(1);
lcd.setCursor(x, 1);
lcd.write(254);
lcd.write(3);
lcd.write(4);
lcd.write(4);
}
void custom2puncte()
{
lcd.setCursor(x,0);
lcd.write(1);
lcd.setCursor(x, 1);
lcd.write(4);
}
// subrutina de afisare a numerelor
void afisare(int numar)
{
switch (numar)
{
case 0:
custom0O();
break;
case 1:
custom1();
break;
case 2:
custom2();
break;
case 3:
custom3();
break;
case 4:
custom4();
break;
case 5:
custom5();
break;
case 6:
custom6();
break;
case 7:
custom7();
break;
case 8:
custom8();
break;
case 9:
custom9();
break;
}
}
void temperaturi(int t)
{
if (t>0)
{
if (t>=10)
{
x = 0;
lcd.clear();
customplus();
x = x + 4;
afisare(int(t/10));
x = x + 4;
afisare(t % 10);
x = x + 4;
customgrad();
// delay(500);
}
else
if (t<10)
{
x = 4;
lcd.clear();
customplus();
x = x + 4;
afisare(t);
x = x + 4;
customgrad();
// delay(500);
}
}
if (t==0)
{
x = 8;
lcd.clear();
afisare(0);
x = x + 4;
customgrad();
// delay(500);
}
if (t<0)
{
t=-t;
if (t<10)
{
x = 4;
lcd.clear();
customminus();
x = x + 4;
afisare(t);
x = x + 4;
customgrad();
//delay(500);
}
else
{
x = 0;
lcd.clear();
customminus();
x = x + 4;
afisare(int(t/10));
x = x + 4;
afisare(t % 10);
x = x + 4;
customgrad();
//delay(500);
}
}
}
void loop()
{
pinMode(led, OUTPUT);
digitalWrite(led, HIGH);
// Read and store Sensor Data
t11=0;
t21=0;
//lcd.clear(); // clear the screen
for (int x=1; x <= 5; x++)
{
// calculate the value
t1 = analogRead(temperaturePin1); // read value from temperature from first sensor (LM335);
t10 = 100.0*(5.0*t1/1023-2.980)+25.0;
t11 = t10 + t11;
t2 = analogRead(temperaturePin2); // read value from temperature from second sensor (LM335);
t20 = 100.0*(5.0*t2/1023-2.980)+25.0;
t21 = t20 + t21;
delay (500);
}
t12 = t11/5.0 -4.0 ; // average and corrected temperature
t22 = t21/5.0 -3.0; // average and corrected temperature
analogWrite(ledr, 0);
analogWrite(leda, 0);
analogWrite(ledv, 0);
digitalWrite(led, LOW);
// temperature leds indicator
if (t12<=19.0) analogWrite(leda, 255);
if ((t12>19.0) and (t12<26.0)) analogWrite(ledv, 255);
if (t12>=26.0) analogWrite(ledr, 255);
// diplay "INT":
lcd.clear();
x =0;
customI();
x=x+4;
customN();
x=x+4;
customT();
x=x+4;
custom2puncte();
delay(1000);
// display int temperature
lcd.clear();
int t5 = t12;
temperaturi(t5);
delay(2500);
lcd.clear();
// diplay "EXT":
lcd.clear();
x =0;
customE();
x=x+4;
customX();
x=x+4;
customT();
x=x+4;
custom2puncte();
delay(1000);
// display ext temperature
lcd.clear();
int t6 = t22;
temperaturi(t6);
//delay(500);
//lcd.clear();
} // end of program
Niciun comentariu:
Trimiteți un comentariu
