Arduino, un servomotor si o tastatura cu 12 butoane

   In prezentul articol o sa prezint un modul de acces cu parola, cu inchidere manuala sau temporizata, in care elementul de executie e un servomotor.
   Acest articol se bazeaza pe informatiile, schemele si programioarele (sketch-urile) din articolele anterioare:
- Arduino si o tastatura cu 12 butoane
- Arduino si o tastatura cu 12 butoane (II)
- Arduino si un servomotor

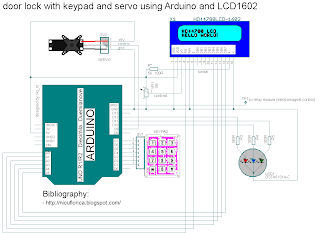

   In prima faza am conectat tastatura, afisajul si servomotorul:
schema de conectare fiind:
   Am realizat 2 filmulete:
- Arduino - door lock with code - ver.4.0, cu timp de acces nelimitat, inchidere prin apasarea tastei '#':
- Arduino - door lock with code - ver.4.1, cu timp de acces limitat la 5 secunde:
   Sketch-ul pentru prima versiune este:
// original schematic and schetch from http://www.arduinoevilgenius.com/
// adapted schematic by niq_ro ( http://www.tehnic.go.ro/ )
// sketch door lock ver.4.0 (19.11.2013) use sketch door lock ver.2.0 (02.03.2013)
// http://nicuflorica.blogspot.com
#include <Keypad.h>
#include <EEPROM.h>
char* secretCode = "2255";
int position = 0;
int position2 = 0;
boolean locked = true;
const byte rows = 4;
const byte cols = 3;
char keys[rows][cols] = {
{'1','2','3'},
{'4','5','6'},
{'7','8','9'},
{'*','0','#'}
};
byte rowPins[rows] = {2, 7, 6, 4};
byte colPins[cols] = {3, 1, 5};

Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, rows, cols);
int redPin = 11;
int greenPin = 9;
int bluePin = 10;
int solenoidPin = 13;

// include the library code:
#include <LiquidCrystal.h>

// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(14, 15, 16, 17, 18, 19);

/*
---------------------
| Arduino | LCD1602 |
---------------------
| D14(A0) |    RS   |
---------------------
| D15(A1) |    E    |
---------------------
| D16(A2) |    D4   |
---------------------
| D14(A3) |    D5   |
---------------------
| D14(A4) |    D6   |
---------------------
| D14(A5) |    D7   |
---------------------

*/

#include <Servo.h>
Servo servoMain; // Define our Servo


void setup()
{
/*pinMode(redPin, OUTPUT);
pinMode(greenPin, OUTPUT);
pinMode(bluePin, OUTPUT);
*/
//pinMode(9, OUTPUT);
servoMain.attach(9); // servo on digital pin 9
//servoMain.write(0);   // Turn Servo Left to 0 degrees
lcd.begin(16, 2);
// print my logo
lcd.setCursor(0, 0);
lcd.print("www.tehnic.go.ro");
lcd.setCursor(0, 1);
lcd.print("   by niq_ro");
delay(5000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("acces permis la");
lcd.setCursor(2, 1);
lcd.print("introducere");
delay(1000);
lcd.clear();

lcd.setCursor(2, 0);
lcd.print("parola corecta");
lcd.setCursor(2, 1);
lcd.print("versiune 4 .0");
delay(1000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("apasa tasta '#'");
lcd.setCursor(0, 1);
lcd.print("pentru stergere");
delay(5000);
lcd.clear();


//eraseCode(); // a first test for initial code at "2255";
delay(1000);
loadCode(); // load the code from EEPROM

flash();
updateOutputs();

// print a new message
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("introdu parola");
lcd.setCursor(0, 1);

}
void loop()
{

//servoMain.write(0);   // Turn Servo Left to 0 degrees
char key = keypad.getKey();
if (key)
{
position2 ++;
//digitalWrite(bluePin, HIGH);
delay(30);
//digitalWrite(bluePin, LOW);
lcd.print("?");
}
if (key == '*' && ! locked)
{
// unlocked and * pressed so change code
position = 0;
position2 = 0;
getNewCode();
updateOutputs();
}
if (key == '#')
{
locked = true;
position = 0;
position2= 0;
updateOutputs();
//digitalWrite(bluePin, HIGH);
//delay(300);
//digitalWrite(bluePin, LOW);

lcd.clear();
lcd.setCursor(1, 0);
lcd.print("yala incuiata");
lcd.setCursor(0, 1);
delay(1000);
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("introdu parola");
lcd.setCursor(0, 1);

//lcd.clear();

}
if (key == secretCode[position])
{
position ++;
}
if (position == 4 & position2 == 4)
{
locked = false;
//digitalWrite(bluePin, HIGH);
delay(300);
//digitalWrite(bluePin, LOW);
updateOutputs();
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola corecta..");
lcd.setCursor(2, 1);
lcd.print("acces permis");
}
delay(100);

}

void updateOutputs()
{
if (locked)
{
//digitalWrite(redPin, HIGH);
//digitalWrite(greenPin, LOW);
digitalWrite(solenoidPin, HIGH);
servoMain.write(90);  // Turn Servo back to center position (90 degrees)
}
else
{
//digitalWrite(redPin, LOW);
//digitalWrite(greenPin, HIGH);
digitalWrite(solenoidPin, LOW);
servoMain.write(0);   // Turn Servo Left to 0 degrees
}
}

void getNewCode()
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola noua este");
lcd.setCursor(6, 1);
lcd.print("");

flash();
for (int i = 0; i < 4; i++ )
{
char key;
key = keypad.getKey();
while (key == 0)
{
key = keypad.getKey();
}
flash();
secretCode[i] = key;
lcd.print(key);
}
saveCode();
flash();flash();

}


void loadCode()
{
if (EEPROM.read(0) == 7)
{
secretCode[0] = EEPROM.read(1);
secretCode[1] = EEPROM.read(2);
secretCode[2] = EEPROM.read(3);
secretCode[3] = EEPROM.read(4);
}
}

void saveCode()
{
EEPROM.write(1, secretCode[0]);
EEPROM.write(2, secretCode[1]);
EEPROM.write(3, secretCode[2]);
EEPROM.write(4, secretCode[3]);
EEPROM.write(0, 7);
}


void eraseCode() // code is "2255"
{
EEPROM.write(1, 2);
EEPROM.write(2, 2);
EEPROM.write(3, 5);
EEPROM.write(4, 5);
EEPROM.write(0, 2);
}


void flash()
{
/*digitalWrite(redPin, HIGH);
digitalWrite(greenPin, LOW);
delay(100);
digitalWrite(redPin, LOW);
digitalWrite(greenPin, HIGH);
*/
delay(100);
}
    Sketch-ul pentru a 2-a versiune este:
// original schematic and schetch from http://www.arduinoevilgenius.com/
// adapted schematic by niq_ro ( http://www.tehnic.go.ro/ )
// sketch door lock ver.4.1 (19.11.2013) use sketch door lock ver.2.0 (02.03.2013)
// http://nicuflorica.blogspot.com
#include <Keypad.h>
#include <EEPROM.h>
char* secretCode = "2255";
int position = 0;
int position2 = 0;
boolean locked = true;
const byte rows = 4;
const byte cols = 3;
char keys[rows][cols] = {
{'1','2','3'},
{'4','5','6'},
{'7','8','9'},
{'*','0','#'}
};
byte rowPins[rows] = {2, 7, 6, 4};
byte colPins[cols] = {3, 1, 5};

Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, rows, cols);
/*
int redPin = 11;
int greenPin = 9;
int bluePin = 10;
*/
int solenoidPin = 13;

// include the library code:
#include <LiquidCrystal.h>

// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(14, 15, 16, 17, 18, 19);

/*
---------------------
| Arduino | LCD1602 |
---------------------
| D14(A0) |    RS   |
---------------------
| D15(A1) |    E    |
---------------------
| D16(A2) |    D4   |
---------------------
| D14(A3) |    D5   |
---------------------
| D14(A4) |    D6   |
---------------------
| D14(A5) |    D7   |
---------------------
*/


#include <Servo.h>
Servo servoMain; // Define our Servo


void setup()
{
  /*
pinMode(redPin, OUTPUT);
pinMode(greenPin, OUTPUT);
pinMode(bluePin, OUTPUT);
*/
pinMode(solenoidPin, OUTPUT);
servoMain.attach(9); // servo on digital pin 9

lcd.begin(16, 2);
// print my logo
lcd.setCursor(0, 0);
lcd.print("www.tehnic.go.ro");
lcd.setCursor(0, 1);
lcd.print("   by niq_ro");
delay(5000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("acces permis la");
lcd.setCursor(2, 1);
lcd.print("introducere");
delay(1000);
lcd.clear();

lcd.setCursor(1, 0);
lcd.print("parola corecta");
lcd.setCursor(2, 1);
lcd.print("versiune 4.1");
delay(1000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("apasa tasta '#'");
lcd.setCursor(0, 1);
lcd.print("pentru stergere");
delay(2000);
lcd.clear();



//eraseCode(); // a first test for initial code at "2255";
delay(1000);
loadCode(); // load the code from EEPROM

flash();
updateOutputs();
afisaj();

}
void loop()
{
/*
 servoMain.write(0);   // Turn Servo Left (to 0 degrees)
 delay(500);          // Wait 1 second
*/

char key = keypad.getKey();
if (key)
{
position2 ++;
// digitalWrite(bluePin, HIGH);
delay(30);
// digitalWrite(bluePin, LOW);
lcd.print("?");
}


if (key == '*' && ! locked)
{
// unlocked and * pressed so change code
position = 0;
position2 = 0;
getNewCode();
updateOutputs();
afisaj();
}
// if (key == '#' && ! locked)   // manual locked when push '#'
if (key == '#' )   // manual locked when push '#'
{
locked = true;
position = 0;
position2= 0;
updateOutputs();
// digitalWrite(bluePin, HIGH);
//delay(300);
// digitalWrite(bluePin, LOW);
afisaj();
}

if (key == secretCode[position])
{
position ++;
}
if (position == 4 & position2 == 4)
{
locked = false;
// digitalWrite(bluePin, HIGH);
delay(300);
// digitalWrite(bluePin, LOW);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola corecta..");
lcd.setCursor(0, 1);
lcd.print("acces permis 5s");
updateOutputs();
afisaj();
}
}


void updateOutputs()
{
if (locked)
{
//digitalWrite(redPin, HIGH);
//digitalWrite(greenPin, LOW);
digitalWrite(solenoidPin, LOW);
servoMain.write(90);  // Turn Servo back to center position (90 degrees)
}
else
{
//digitalWrite(redPin, LOW);
//digitalWrite(greenPin, HIGH);
digitalWrite(solenoidPin, HIGH);
servoMain.write(0);  // Turn Servo back to left position (0 degrees)

delay (50);
for (int i=0; i <= 100; i++)
{
char key;
key = keypad.getKey();
if (key == '*')
{
// unlocked and * pressed so change code
position = 0;
position2 = 0;
getNewCode();
updateOutputs();
}
delay (50);
}
//digitalWrite(redPin, HIGH);
//digitalWrite(greenPin, LOW);
digitalWrite(solenoidPin, LOW);
servoMain.write(90);  // Turn Servo back to center position (90 degrees)
locked = true;
position = 0;
position2= 0;
}
}


void getNewCode()
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola noua este");
lcd.setCursor(6, 1);
lcd.print("");

flash();
for (int i = 0; i < 4; i++ )
{
char key;
key = keypad.getKey();
while (key == 0)
{
key = keypad.getKey();
}
flash();
secretCode[i] = key;
lcd.print(key);
}
saveCode();
flash();flash();
//delay(400);
//afisaj();
}


void loadCode()
{
if (EEPROM.read(0) == 7)
{
secretCode[0] = EEPROM.read(1);
secretCode[1] = EEPROM.read(2);
secretCode[2] = EEPROM.read(3);
secretCode[3] = EEPROM.read(4);
}
}

void saveCode()
{
EEPROM.write(1, secretCode[0]);
EEPROM.write(2, secretCode[1]);
EEPROM.write(3, secretCode[2]);
EEPROM.write(4, secretCode[3]);
EEPROM.write(0, 7);
}


void eraseCode() // code is "2255"
{
EEPROM.write(1, 2);
EEPROM.write(2, 2);
EEPROM.write(3, 5);
EEPROM.write(4, 5);
EEPROM.write(0, 2);
}


void flash()
{
//digitalWrite(redPin, HIGH);
//digitalWrite(greenPin, LOW);
delay(100);
//digitalWrite(redPin, LOW);
//digitalWrite(greenPin, HIGH);
delay(100);
}

void afisaj()
{
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("yala incuiata");
lcd.setCursor(0, 1);
delay(500);
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("introdu parola");
lcd.setCursor(0, 1);
}
   Ulterior am conectat si LED-ul multicolor, care imi indica starea (rosu la inchis, verde la deschis si albastru la apasare tasta):

   Am facut un filmulet, numit Arduino - door lock with code - ver.4.2
iar sketch-ul pentru aceasta varianta este:
// original schematic and schetch from http://www.arduinoevilgenius.com/
// adapted schematic by niq_ro ( http://www.tehnic.go.ro/ )
// sketch door lock ver.4.2 (20.11.2013) use sketch door lock ver.2.0 (02.03.2013)
// http://nicuflorica.blogspot.com

#include <Keypad.h>
#include <EEPROM.h>
char* secretCode = "2255";
int position = 0;
int position2 = 0;
boolean locked = true;
const byte rows = 4;
const byte cols = 3;
char keys[rows][cols] = {
{'1','2','3'},
{'4','5','6'},
{'7','8','9'},
{'*','0','#'}
};
byte rowPins[rows] = {2, 7, 6, 4};
byte colPins[cols] = {3, 1, 5};

Keypad keypad = Keypad(makeKeymap(keys), rowPins, colPins, rows, cols);

int solenoidPin = 13;
int redPin = 12;
int bluePin = 11;
int greenPin = 10;
int servoPin = 9;

// include the library code:
#include <LiquidCrystal.h>

// initialize the library with the numbers of the interface pins
LiquidCrystal lcd(14, 15, 16, 17, 18, 19);

/*
---------------------
| Arduino | LCD1602 |
---------------------
| D14(A0) |    RS   |
---------------------
| D15(A1) |    E    |
---------------------
| D16(A2) |    D4   |
---------------------
| D14(A3) |    D5   |
---------------------
| D14(A4) |    D6   |
---------------------
| D14(A5) |    D7   |
---------------------
*/


#include <Servo.h>
Servo servoMain; // Define our Servo


void setup()
{

pinMode(redPin, OUTPUT);
pinMode(greenPin, OUTPUT);
pinMode(bluePin, OUTPUT);

pinMode(solenoidPin, OUTPUT);
servoMain.attach(servoPin);

lcd.begin(16, 2);
// print my logo
lcd.setCursor(0, 0);
lcd.print("www.tehnic.go.ro");
lcd.setCursor(0, 1);
lcd.print("   by niq_ro");
delay(5000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("acces permis la");
lcd.setCursor(2, 1);
lcd.print("introducere");
delay(1000);
lcd.clear();

lcd.setCursor(1, 0);
lcd.print("parola corecta");
lcd.setCursor(2, 1);
lcd.print("versiune 4.2");
delay(1000);
lcd.clear();

lcd.setCursor(0, 0);
lcd.print("apasa tasta '#'");
lcd.setCursor(0, 1);
lcd.print("pentru stergere");
delay(2000);
lcd.clear();



//eraseCode(); // a first test for initial code at "2255";
delay(1000);
loadCode(); // load the code from EEPROM

flash();
updateOutputs();
afisaj();

}
void loop()
{

char key = keypad.getKey();
if (key)
{
position2 ++;
digitalWrite(bluePin, HIGH);
delay(30);
digitalWrite(bluePin, LOW);
lcd.print("?");
}


if (key == '*' && ! locked)
{
// unlocked and * pressed so change code
position = 0;
position2 = 0;
getNewCode();
updateOutputs();
afisaj();
}
// if (key == '#' && ! locked)   // manual locked when push '#'
if (key == '#' )   // manual locked when push '#'
{
locked = true;
position = 0;
position2= 0;
updateOutputs();
digitalWrite(bluePin, HIGH);
delay(300);
digitalWrite(bluePin, LOW);
afisaj();
}

if (key == secretCode[position])
{
position ++;
}
if (position == 4 & position2 == 4)
{
locked = false;
digitalWrite(bluePin, HIGH);
delay(300);
digitalWrite(bluePin, LOW);
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola corecta..");
lcd.setCursor(0, 1);
lcd.print("acces permis 5s");
updateOutputs();
afisaj();
}
}


void updateOutputs()
{
if (locked)
{
digitalWrite(redPin, HIGH);
digitalWrite(greenPin, LOW);
digitalWrite(solenoidPin, LOW);
servoMain.write(90);  // Turn Servo back to center position (90 degrees)
}
else
{
digitalWrite(redPin, LOW);
digitalWrite(greenPin, HIGH);
digitalWrite(solenoidPin, HIGH);
servoMain.write(0);  // Turn Servo back to left position (0 degrees)

delay (50);
for (int i=0; i <= 100; i++)
{
char key;
key = keypad.getKey();
if (key == '*')
{
// unlocked and * pressed so change code
position = 0;
position2 = 0;
getNewCode();
updateOutputs();
}
delay (50);
}
digitalWrite(redPin, HIGH);
digitalWrite(greenPin, LOW);
digitalWrite(solenoidPin, LOW);
servoMain.write(90);  // Turn Servo back to center position (90 degrees)
locked = true;
position = 0;
position2= 0;
}
}


void getNewCode()
{
lcd.clear();
lcd.setCursor(0, 0);
lcd.print("parola noua este");
lcd.setCursor(6, 1);
lcd.print("");

flash();
for (int i = 0; i < 4; i++ )
{
char key;
key = keypad.getKey();
while (key == 0)
{
key = keypad.getKey();
}
flash();
secretCode[i] = key;
lcd.print(key);
}
saveCode();
flash();flash();
//delay(400);
//afisaj();
}


void loadCode()
{
if (EEPROM.read(0) == 7)
{
secretCode[0] = EEPROM.read(1);
secretCode[1] = EEPROM.read(2);
secretCode[2] = EEPROM.read(3);
secretCode[3] = EEPROM.read(4);
}
}

void saveCode()
{
EEPROM.write(1, secretCode[0]);
EEPROM.write(2, secretCode[1]);
EEPROM.write(3, secretCode[2]);
EEPROM.write(4, secretCode[3]);
EEPROM.write(0, 7);
}


void eraseCode() // code is "2255"
{
EEPROM.write(1, 2);
EEPROM.write(2, 2);
EEPROM.write(3, 5);
EEPROM.write(4, 5);
EEPROM.write(0, 2);
}


void flash()
{
digitalWrite(redPin, HIGH);
digitalWrite(greenPin, LOW);
delay(100);
digitalWrite(redPin, LOW);
digitalWrite(greenPin, HIGH);
delay(100);
}

void afisaj()
{
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("yala incuiata");
lcd.setCursor(0, 1);
delay(500);
lcd.clear();
lcd.setCursor(1, 0);
lcd.print("introdu parola");
lcd.setCursor(0, 1);
}
la
Etichete: , , , , , ,
Locația: Craiova, România

3 comentarii:

  1. Ravvy26 noiembrie 2013 la 15:18

    Frumos.

    RăspundețiȘtergere
  2. Hejo7 mai 2019 la 04:09


    The password is not saved after resetting the Arduino. How do I achieve that stayed?

    RăspundețiȘtergere
    Răspunsuri
    1. niq_ro7 mai 2019 la 08:18

      I don't know why... for me is an old project, so I must remade the circuit and test againt to see if work or not, but nor very quickly because I'm vee busy... (you have EEPROM library ?)... so, if you change password, it work with new password, but if you power down the Arduino and power up work just old password ?

      Ștergere

Abonați-vă la: Postare comentarii (Atom)
